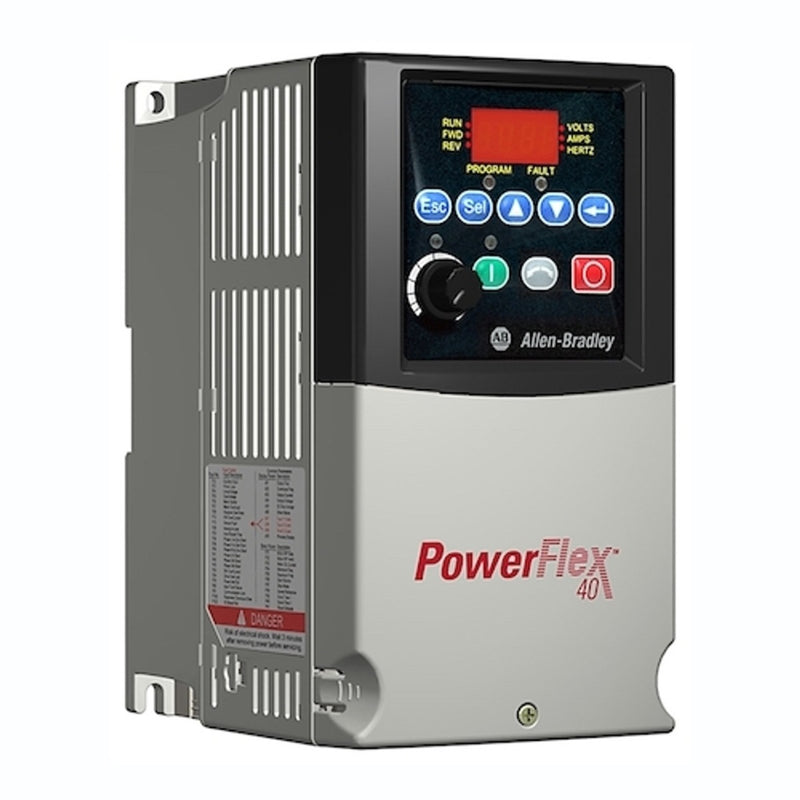

Allen-Bradley PowerFlex 40 22B-D2P3N104 AC Drive

Technical Specifications

• PowerFlex 40 Drives horsepower ratings range from 0.5-1.5HP, 0.5-10HP, 0.5-15HP, or 1-15HP


• Input-voltage range from 100-120V, 200-240V, 380-480V, or 500-600V


• Output-voltage range from 0.5-1.5HP, 0.5-3HP, 0.5-10HP, 0.5-15HP, or 1-15HP


• Enclosure types include NEMA/UL Type Open and IP20


• Electrical frequency tolerance 48-63Hz

Overview

• Mounting and Packaging Choices



  • DIN rail mounting feature for installation on ratings through 4 kilowatts or 5 horsepower


  • Panel mounting also available


  • 50 Celsius ambient temperatures allowable with little spacing between drives


  • Zero Stacking permissible for ambient temperatures up to 40 Celsius






• Simple Set-up and Operation



  • Easy control featuring integral keypad with 4-digit display and 10 LED indicators


  • Control keys, keypad, and potentiometer active out of the box


  • Top 10 most common parameters grouped together for convenience






• Network Solutions and Easy Programming



  • Program, monitor and control drives using DriveExplorer or DriveExecutive


  • Connectivity to any controller with DF1 messaging due to serial converter module


  • Multi-drop network configuration with integral RS485 communications


  • Additional control and programming flexibility with NEMA 1 handheld LCD keypad and a NEMA 4X remote
