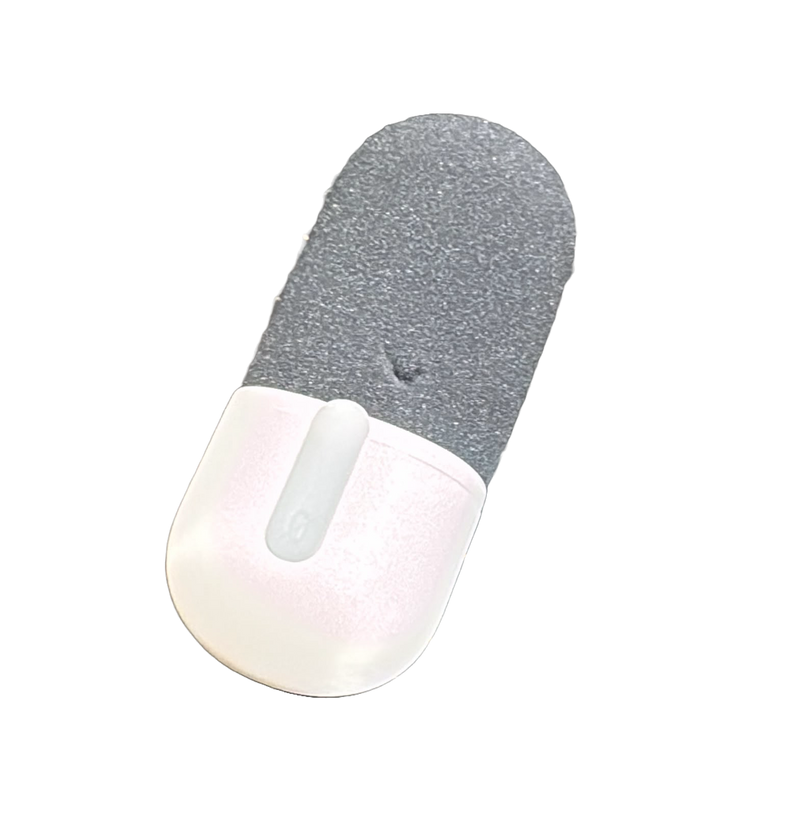

Elgato Wave Neo Microphone Only

Dimensions

Without riser (WDH):
92 x 92 x 182 mm / 3.6 x 3.6 x 7.2 in

Capsule

Condenser

Polar pattern

Cardioid

Bit depth

24 Bit

Frequency response

20 Hz - 20 kHz

Max SPL

120 dB

Connectivity

PC, Mac, PS4, PS5, iPad, iPhone*
Stereo headphones
*May require Lightning-to-USB adapter

Supported mounting threads

1/4", 5/8", 3/8"

Weight

Without riser:
450 g / 15.8 oz

Sample rate

48kHz, 96kHz

Sensitivity

-23 dBFS (min gain)
7 dBFS (max gain)

Dynamic range

94 dB

Interface

Digital: USB-C
Headphones: 3.5 mm stereo jack

Power consumption

5V 200 mA max
