Extractme 12 Way Blade Fuse Block with Negative Bus

Condition: New open box

Low stock
Original price $14.99 - Original price $14.99
Original price
$14.99 - $14.99
Current price $14.99

Extractme 12 way 12 volt fuse block with ground and LED warning indicator.

12 Circuits w/negative bus fuse box holder with waterproof protection cover for automotive, car, RV, truck, boat, marine.

Current Rating 100 Amps
Connector Type Screw
Mounting Type Panel Mount
Material Pbt
Voltage 32 Volts

About this item

  • Optimal Conductivity - 12 Circuit fuse block is applied to ATC/ATO (Middle Size) fuses, which has positive & negative side, meaning for every positive terminal screw there's a negative terminal screw. Max operating voltage: DC 32V, Max 30Amp per circuit & 100Amp per panel.

  • Red LED Indicator - When a blown fuse is detected, the related red LED warning light will light up immediately, reminding you to check and replace the blown fuse. Transparent plastic cover with push latch system, easy to operate, dustproof, and convenient to monitor the fuses situation.

  • Superior PBT Material - Fuse block box made of environment-friendly PBT material meets all the standards of an ideal fuse box. Which has high mechanical strength, good insulation, heat & flame resistance. No problems such as fractures, deformation, burning, or short circuits will occur.

  • Convenient Sticker Label -  Marine fuse blocks come with different device name stickers, according to the name on the sticker, you can immediately identify which appliance is going wrong, convenient for examination and repair, easy to troubleshoot outdoors, and save time.

  • Wide Application - Widely used in cars, autos, buses, tankers, ships, marine, trucks, vehicles, SUVs, yachts, RVs, boats, etc.

Automotive fuse block box specifications:

➽ Product dimensions: 13.8 × 8.5 × 3.65 cm
➽ Input voltage: DC 12V - 32V
➽ Input current: Max. 100Amp per panel
➽ Output terminal rating: Max. 30Amp per circuit
➽ Main line terminal: M5 threaded stud
➽ Main wire: #4 - 6
➽ Single wire terminal: M4 threaded stud
➽ Single wire: #12 - 16


The fuse box will distinguish the strength of current by different color, different colors fuse represent different currents.

For example: 【Yellow:20A; Blue:15A; Red:10A; Orange: 5A Fuse】, when ready to use, just insert the fuses into corresponding fuse holder box.

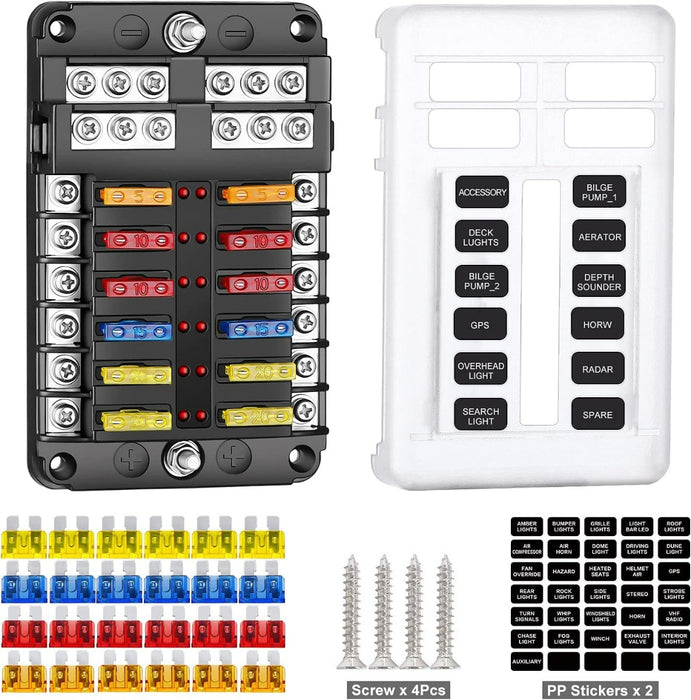

Package includes:

➽ 12-Way Fuse Block Terminal × 1
➽ 5A Fuse × 6
➽ 10A Fuse × 6
➽ 15A Fuse × 6
➽ 20A Fuse × 6
➽ Stickers × 2
➽ Screws × 4
