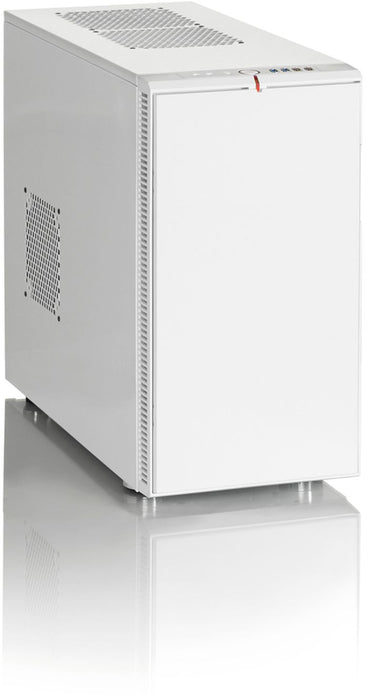

Fractal Design DEFINE R4 Arctic White Compute Case

Fractal Design DEFINE R4 Arctic White Compute Case

DEFINE Series

• The DEFINE series of cases focuses on delivering the perfect balance between silent and minimalistic Scandinavian design.
• The understated look and feel allows for a natural fit into your home or office while never compromising on quality, performance or configurability.

DEFINE R4 Arctic White

Key features

• High density noise-reducing material for an optimal silent case - To achieve a high level of noise reduction, material with mass should be incorporated which is what we strive to achieve with the dense bitumen used on the side panels
• Patent pending ModuVent™ design allowing the user to choose between optimal silence or maximum airflow
• Top HDD cage (5 trays total) can be rotated 90 degrees or removed for additional airflow or to accommodate long graphic cards up to 430mm in length
• Three-speed fan controller is strategically integrated in the front panel and supports up to 3 fans
• Two Silent Series R2 fans included, featuring hydraulic bearings contributing to a longer life expectancy – Silent Series R2 retail fans will now come standard in all cases
• Wider case body that allows for improved cable routing behind the motherboard – now 26mm wide
• New tool-less front fan holder makes switching front fans a breeze
• Two SSDs can be mounted on the back of the motherboard plate in addition to the 8 slots in the HDD trays, for a total of 10 SSD positions available


Specifications

• ATX, Micro ATX, Mini ITX motherboard compatibility
• 7 + 1 expansion slots
• 2 - 5.25" bays
• 8 - 3.5" HDD trays - all compatible with SSDs, 2 - 2.5" extra SSD positions
• 3 - ModuVent™ plates - two in the top and one in the side
• 7 - fan positions (2 Silent Series R2 fans included)
• Filtered fan slots in the front and bottom
• CPU coolers up to 170mm tall (when no fan is installed in the side panel)
• ATX PSUs up to 170mm deep when using the bottom fan location, when not using this fan location longer PSUs (up to 270mm deep) can be used
• Graphics cards up to 295mm in length with the top HDD cage installed
• With the top cage removed, graphics cards up to 430mm in length may be installed
• 26mm of space for cable routing behind the motherboard plate
• Thick rubber grommets on all holes on the motherboard plate
• Colours available: Black Pearl, Titanium Grey, Arctic White
• Case dimensions (WxHxD): 232 x 464 x 523mm
• Package dimensions (WxHxD): 320 x 535 x 610mm
• Net weight: 12.3 kg

Cooling system

• Front: 1 - 120/140mm fan (included is a hydraulic bearing 140mm Silent Series R2 fan, 1000 RPM speed); 1 - 120x140mm fan (not included)
• Rear: 1 - 120/140mm fan (included is a hydraulic bearing 140mm Silent Series R2 fan, 1000 RPM speed)
• Top: 2 - 120/140mm fans (not included) - positions also support some models of 240 radiators, depending on configuration
• Bottom: 1 - 120/140mm fan (not included)
• Side: 1 - 120/140mm fan (not included)
• Fan controller: 1 - Integrated fan controller for up to 3 fans (included)

Front interface

• 2 - USB 3.0, 2 - USB 2.0
• Audio I/O
• Power button with LED (red)
• Reset button
• Fan controller (behind door)

Additional information

• EAN/GTIN-13: 7350041080930
• UPC: 817301010931
• Product code: FD-CA-DEF-R4-WH
• Available for System Integrators

Package Includes:

• Fractal Design DEFINE R4 Arctic White Compute Case
• Accessory box
• Click here for support resources
