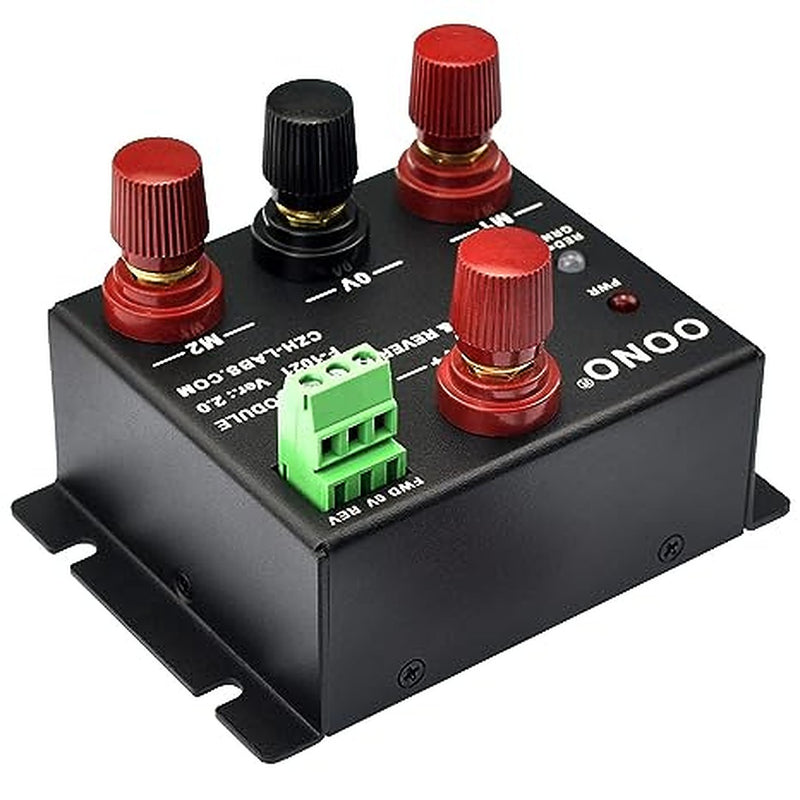

Oono F-1021- 12V 50Amp Forward and Reverse Relay Module for Motor/Linear Actuator

Oono F-1021- 12V 50Amp Forward and Reverse Relay Module for Motor/Linear Actuator

Condition: New open box

SKU RT6-20636-F-1021-NOB
Availability:
Out of stock
Sold out
$23.99 - $23.99
$23.99
$23.99 - $23.99
$23.99
Current Rating: 50 Amps
Brand: OONO
Operation Mode: Automatic
Coil Voltage: 12 Volts
Contact Current Rating: 50 Amps


About this item
  • Reversing relay module. Powers any reversing motor equipment, can be used for any application that requires the ability to reverse motion.
  • Support Momentary-action(Self-resetting) switch and Alternate-action (Self-holding) switch. For Self-resetting switch, when the switch is pressed the motor operates, and when the switch is released the motor stops.
  • High quality aluminum enclosure, thickness 1.5mm/0.06". Diameter M6 / 6mm threaded copper terminals for power supply and load. Connect switch terminal block: pitch 5.0mm/0.197", wire size 26~12 AWG / 2.5mm square, stripping length 7mm/0.28", Metric M2.5 slotted screw.
  • Operating Voltage: 10 ~ 15V DC, Rated current 50 Amp. Power on indicating red LED. Forward and Reverse status indicating LED, forward status lighting red, reverse lighting green.

    INCLUDES:
  • 1 x 12V 50Amp Forward and Reverse Relay Module
