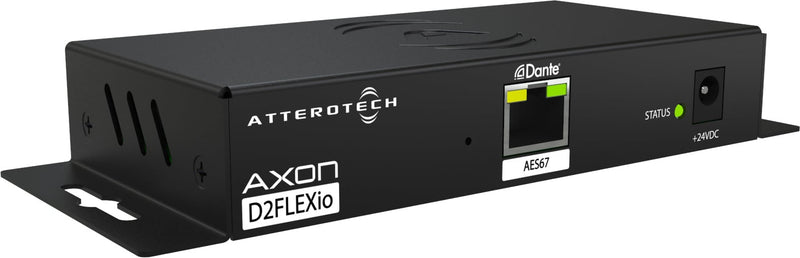

QSC Axon D2FLEXio Dante/AES67 Networked Audio Interface

The D2FLEXio provides cost effective analog audio connectivity
for installed AV systems.
Each analog audio I/O features an installer selectable switch to
assign input or output audio connectivity. The D2FLEXio is
802.3af PoE powered with the option of a local DC supply in cases
where PoE power is not available. Simple analog gain trim pots
are provided for proper gain staging with pro or consumer line
level audio equipment.
This flexibility provides a single product solution for cost
effective analog audio conversion to and from any Dante™ or
AES67 system.
Figure 2 - D2FLEXio Rear Panel
1.1 – What’s in the Box
The D2FELXio comes supplied with the following:
o D2FLEXio device (P/N: 900-00225-01)
1.2 – Optional Extras
The following are available as options for the D2FLEXio and that
may be ordered separately:
o A 24 V DC power supply is available if PoE power is not
desired or available – P/N: 900-00175-01
