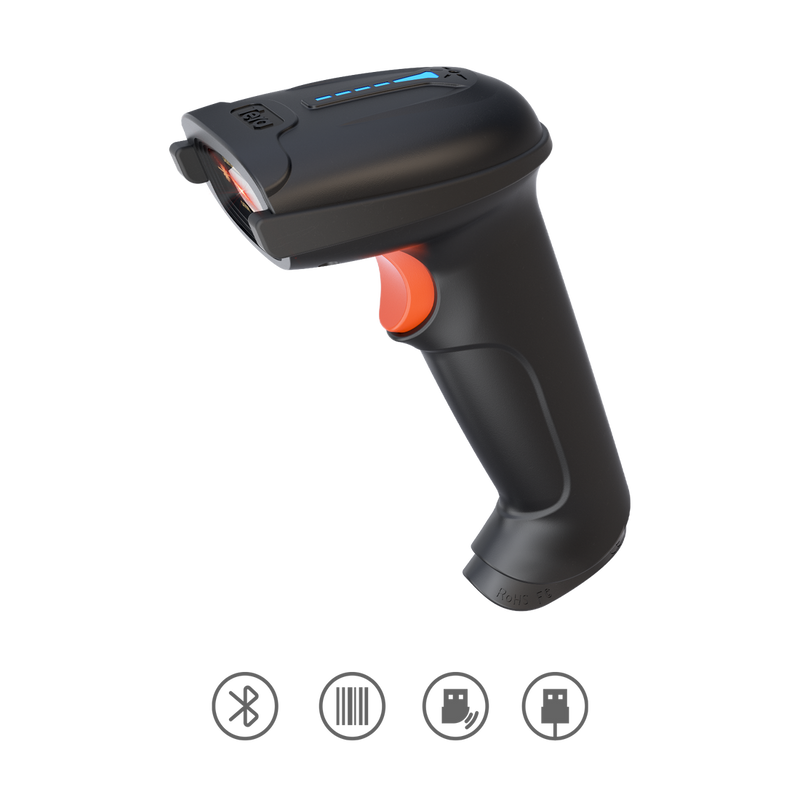

Tera Scanner T5100C CCD 1D Wireless Barcode Scanner
Tera Fully Upgraded T5100C Barcode Scanner CCD Highest Pixel with Extreme Performance. Barcode Scanner CCD
Please Note: This scanner DOES NOT scan 2D, QR code, but it can scan 1D codes on digital screens.
Tera Pro T5100C is equipped with 2500 pixels high-resolution extreme performance CCD optical lens that is capable of scanning 3 mil high density and long barcodes, while the majority CCD Barcode Scanners on the market are built with normal optical lens that only provides a normal scanning experience.
Note: Not Compatible with Square POS system
Note: When the scan result is different from the actual number (e.g. extra characters appearing at the front), conditionally, the barcode itself is as it's scanned. It's not the quality or scanning issue of the scanner itself. Tera scanners can be modified with a setting code to hide the extra characters, please see the manual or consult us for details.
We have perfectly matched scanner stands for Model T5100C available for sale. If you are interested, please click on the Tera-Universal Stand at the bottom of the page to purchase.
Battery Level Indicator – Tera introduced the unique Battery Level display function to Tera T5100C. No other product on the market has such a feature. There are four levels of the indicator light, each time a level of battery is used up, and one level indicator light will go out.
2500mAh Large Battery Capacity - Most of the 1D laser wireless barcode scanners on the market are equipped with battery capacities of 800 to 1200mAh. However, Tera T5100C is one of the few products that are equipped with an extra-large 2500mAh battery. As a result, Tera T5100C extend the service time and standby time with the huge battery capacity.
Ergonomic Design - Several design elements are integrated into the upgraded Tera T5100C. The scanner handle is extended by 0.3 inches (8mm) and thickened, along with the specially designed curve, making it much more comfortable for US customers to hold this product for a long time. The trigger is designed to be smooth and flat for a better grip feeling.
Anti-Shock Silicone – The grey anti-shock silicone provides complete protection for your scanner, avoiding collision damage or break while falling off your desk or shelf. IP54 technology protects the scanner from dust.
SPECIFICATION
SCANNING SPECS
Resolution | ≥3mil/0.1mm(PCS90%,CODE 39) |
Depth of Scanning Field | 50mm~500mm |
Scanning Angle - Roll | ±30° |
Scanning Angle - Pitch | ±60° |
Scanning Angle - Skew | ±60° |
Decoding Capability | 1D Barcodes |
Supported Barcode Types | UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc. |
DATA TRANSMISSION
Transmission Capability | Wired USB, Wireless 2.4G, Wireless Bluetooth (HID, SPP, BLE) |
Wireless Transmission Distance | 2.4GHz,60meters(Open distance) |
Bluetooth Transmission Distance | Bluetooth 30meter(Open distance) |
Notification | LED indicator, buzzer |
ELECTRICAL
Working Voltage | DC 5V |
Working Current | 180mA(Average Work) |
Battery Capacity | 1600mAh |
Charging Requirement | Maximum 5V 1A |
Charging Time | NA |
Working Time | NA |
ENVIRONMENTAL
Working Temperature | 0℃ to 50℃ |
Storage/Transportation | -30℃ to 60℃ |
Humidity | 5% to 95% (non-condensing) |
FUNCTIONS
Beeper Volumn ON/OFF | √ |
Beeper Volumn UP/DOWN | √ |
Inverse Barcodes | √ |
Character Case Conversion | √ |
Scanning Mode | Manual Trigger Mode, Continuous Scanning Mode, Sensor Activated Mode |
USB-COM / Virtual Port | √ |
Storage Mode | √ |
Add Prefix/Suffix | √ |
Hide Prefix/Suffix | √ |
GS Replacement | √ |
Time Stamp | √ |
Terminator | √ |
INCLUDES:
- 1 X Tera Scanner T5100C CCD 1D Wireless Barcode Scanner
- 1 X USB cable
